Description

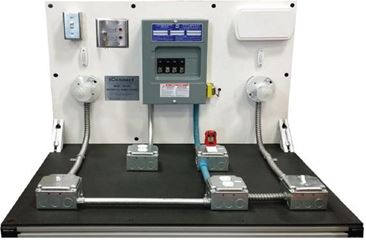

This Trainer Panel is used to demonstrate electrical principles similar to those found in a residential dwelling. It also has provision for extensive switching and connection of lamps and outlets. The trainer has a 24 volt power supply that is used to wire and test all circuits After the instructor has approved wiring, 120VAC can be applied using the key-lock circuit breaker control. The ability to use low voltage for testing and 120VAC for final wiring is a valuable teaching aid.
The inclusion of the dual 24 VAC power supply makes this a very useful trainer for introductory classes, since all initial breadboarding and testing can be done at low voltage and then 120VAC is only made available to the trainer after the instructor has used the key to turn on the Electro-Lock to apply 120VAC. Students learn wiring as well as the proper electrical hookups from the manual that is included. All of the above components are mounted on a hardwood panel.
